Catapult Vector 8 - Elite Athlete Monitoring System

The design process for Catapult Vector 8 was a research-driven program led by D+I (now Capgemini). This professional approach involved re-architecting every device to meet an ambitious brief.

A unified industrial design language was refined through prototyping, guiding the development of PCB and RF board layouts, enclosure designs, and mounting systems—all validated through rigorous testing. The project met and exceeded its core challenges.

The Smart Dock eliminated reliance on field-side laptops by embedding onboard compute for direct-to-cloud data handling, making it the most computationally powerful device ever built in sport. It enables downloading 90 tags in under a minute, compared to the previous generation’s 20-minute process.

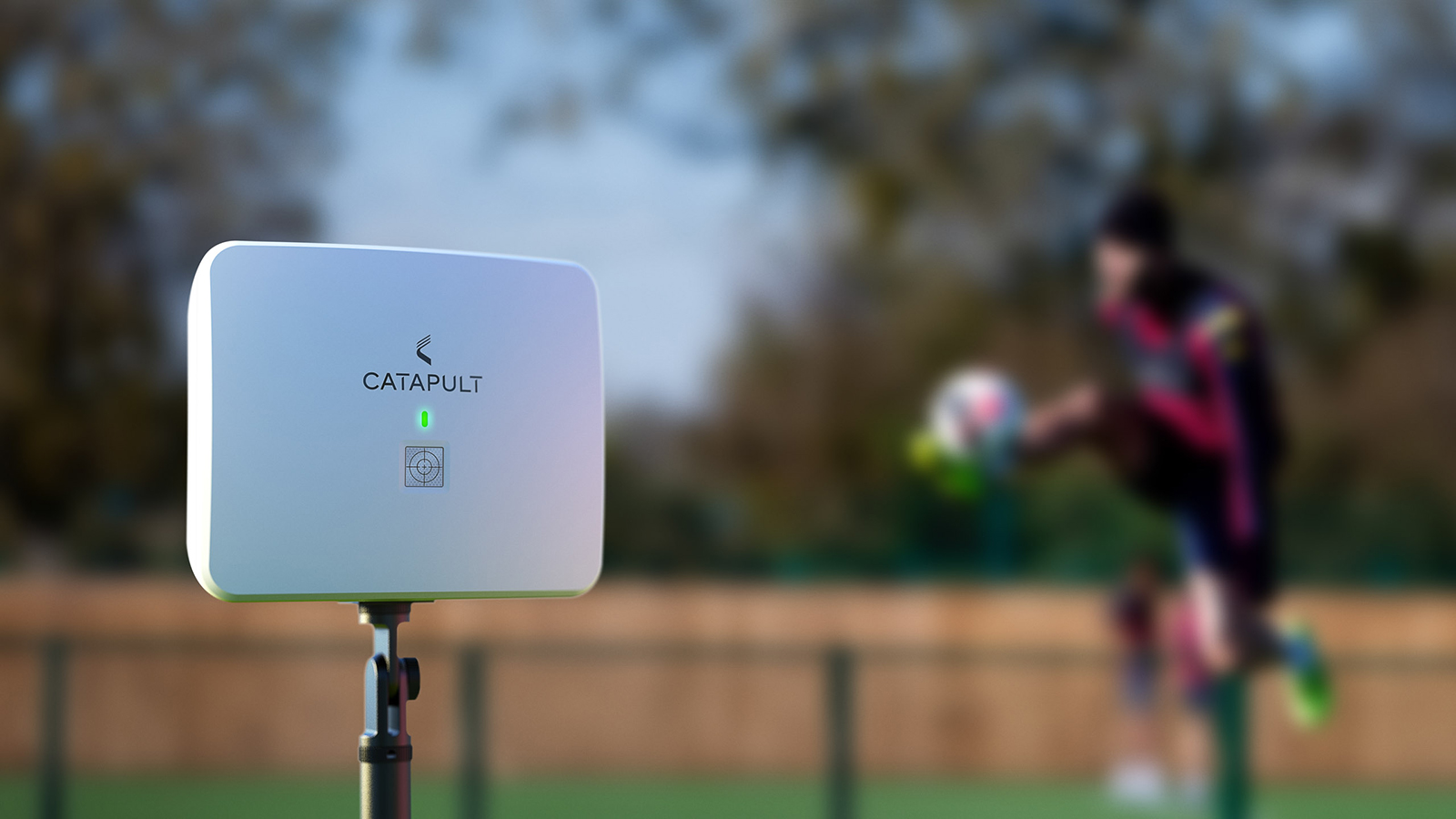

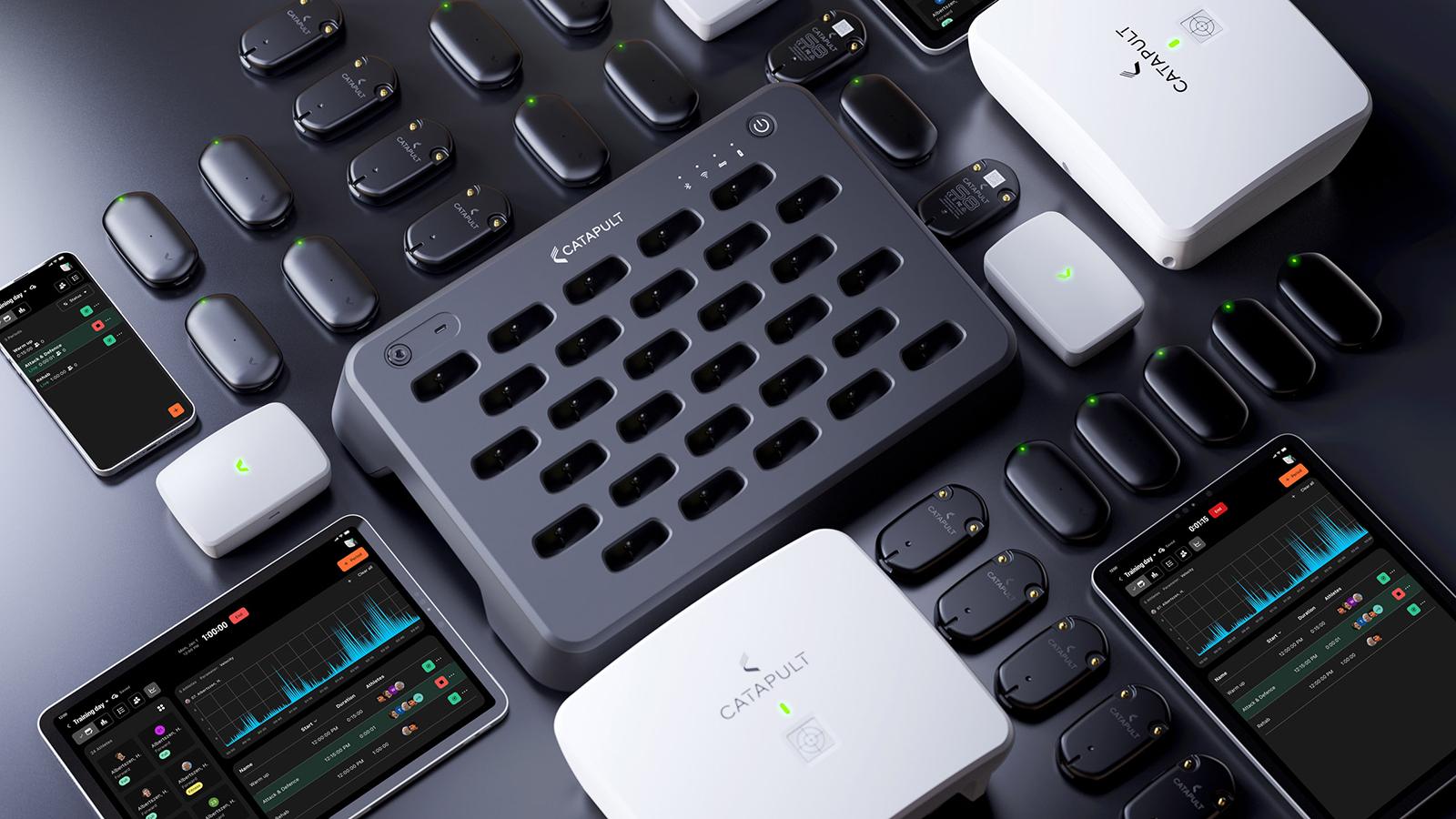

The S8 Tag was reengineered for compactness and dual-environment tracking, while the Receiver and Relay transitioned to weatherproof, portable formats with tool-free magnetic mounting. The system supports up to 120 athletes, streamlining real-time data processing.

Modular architecture and component sharing enabled firmware extensibility, variant evolution, and reduced assembly costs, future-proofing the platform. The design reflects Catapult’s brand leadership and includes IP protection through registered patents, trademarks, and copyright.

Final implementation maintained a unified design language across all components, guiding RF layout, assembly logic, and interface clarity. Matte black finishes on the S8 Tag and Smart Dock contrast with white Relay and Receiver units for clear role identification.

Housing geometries were shaped to accommodate internal components and field deployment needs. Materials and construction techniques were optimised for serviceability, manufacturability, and long lifecycle performance.

A custom data transfer solution was developed for the Smart Dock to bypass USB limitations. All components are housed in EVA carry kits for streamlined transport and on-field operation. Vector 8’s design maturity and innovation deliver a powerful, scalable solution for elite sports performance, setting a new benchmark in athlete monitoring technology.

The Catapult Vector 8 project comprehensively satisfies and exceeds the criteria for good design, showcasing a professional and holistic approach to product development. Functionality was central, with Vector 8 advancing athlete monitoring through a modular, miniaturised platform.

The Smart Dock embeds onboard compute, eliminating field-side laptops and enabling direct-to-cloud data handling. It downloads 90 tags in under a minute, compared to the previous 20-minute process.

The S8 Tag supports real-time metric processing and dual-environment tracking, while the Receiver and Relay offer weatherproof, portable formats for full-field coverage of up to 120 athletes.

User experience guided every design decision. A unified industrial design language ensures consistency across components, with matte black finishes for the S8 Tag and Smart Dock contrasting with white Receiver and Relay units for clear role identification.

Simplified tactile interfaces, colour-coded LED indicators, and compact housing geometries support clarity and ease of use. Tool-free magnetic mounting and EVA carry kits streamline setup, transport, and on-field operation, reducing friction in high-performance workflows.

Safety is addressed through ingress-rated enclosures, integrated cable management, and hardware built to withstand high-contact environments, meeting elite sport durability and electrical standards.

Quality and sustainability were achieved through a research-driven design program led by D+I (now Capgemini). PCB and RF layouts, enclosures, and mounting systems were prototyped and validated through extensive testing.

Modular architecture, component sharing, firmware extensibility, and replaceable batteries support a more sustainable approach, reducing tooling, packaging, and waste while enabling future upgrades.

Vector 8 sets a new benchmark for design excellence in Australia and globally. It redefines athlete monitoring by embedding live processing, real-time tracking, and cloud streaming in a portable ecosystem.

Its adoption by leading clubs worldwide demonstrates measurable performance and commercial impact. Protected by patent, trademark, and copyright, it exemplifies the value of investing in professional design.

The Catapult Vector 8 project addresses a legitimate problem by redefining the architecture of athlete monitoring. The challenge was to eliminate reliance on field-side laptops, enable next-generation live data streaming, and improve portability.

Vector 8 solves this through a fully portable hardware ecosystem that embeds live processing, real-time tracking, and direct-to-cloud streaming, replacing traditional fixed infrastructure.

Several ground-breaking features emerged from the design process. The Smart Dock is the most computationally powerful device ever built in sport. It eliminates field-side laptops by incorporating onboard compute for direct-to-cloud data handling.

A custom data transfer solution bypasses USB-C limitations, enabling simultaneous downloads for 30 tags. This allows an NFL team’s 90 tags to download in under a minute, compared to the previous 20-minute process.

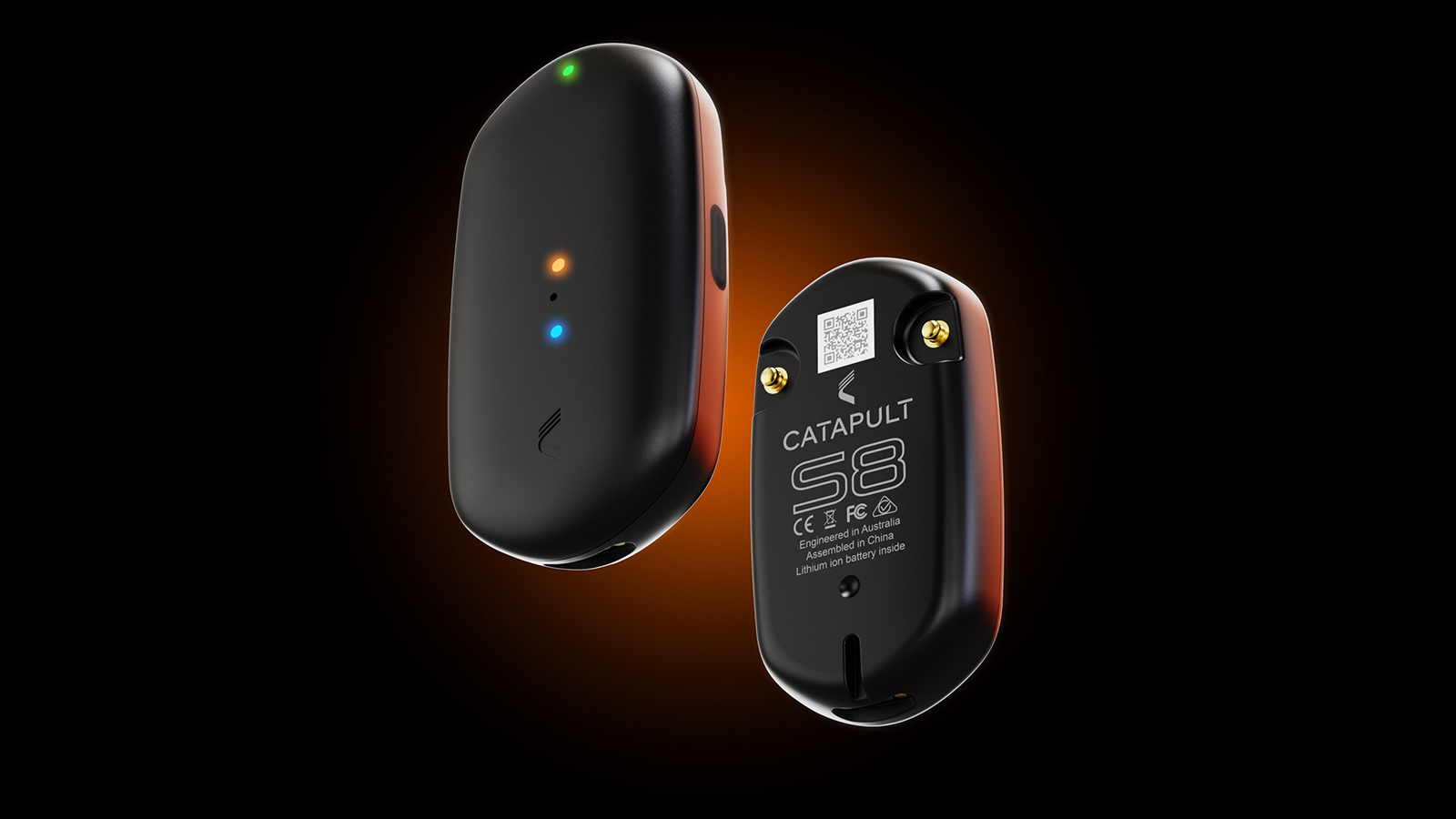

The S8 Tag was reengineered for compactness, offering dual-environment tracking and live metric processing. It integrates advanced microprocessors and inertial sensors within a miniature 43x82mm housing.

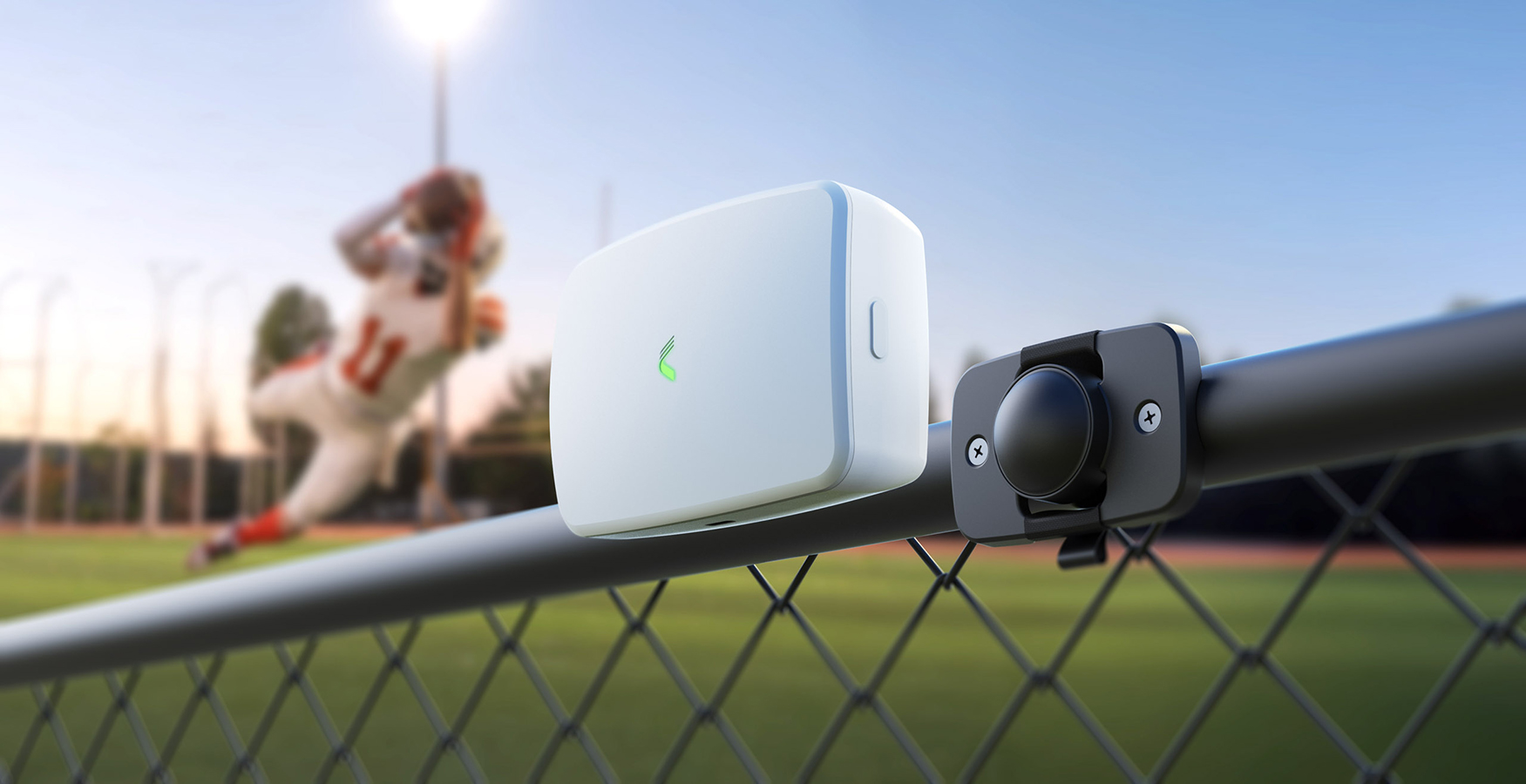

The Receiver and Relay transitioned from fixed installations to weatherproof, portable formats with a universal magnetic mounting system for fast, tool-free attachment to various surfaces.

The design is highly user-centred, addressing the needs of coaches, analysts, and performance staff. A unified industrial design language spans all devices, ensuring clarity and ease of use in fast-paced environments.

Simplified tactile interfaces and colour-coded LED indicators provide at-a-glance status checks. Optimised housing geometries support compactness and clear role identification. EVA carry kits streamline transport and on-field operation, reducing friction in high-performance workflows.

Vector 8 minimises setup time and delivers immediate access to actionable data, directly responding to user needs in elite sport. Its innovative, user-focused execution sets a new benchmark in athlete monitoring, demonstrating how professional design can solve complex challenges and create new opportunities in sport technology.

The Catapult Vector 8 project represents a transformative outcome in athlete monitoring, redefining its architecture for elite sport globally. Designed by Catapult Sports in collaboration with D+I (now Capgemini), it delivers long-lasting positive impact across commercial, social, and environmental dimensions.

Commercially, Vector 8 provides Catapult Sports with a system-wide platform that strengthens its position in global elite sport. By replacing legacy infrastructure with compact, modular, and portable hardware, it reduces equipment and technical overhead, lowering cost of ownership for clients.

The design supports scalable manufacturing, IP generation, and variant development, future-proofing the product line and accelerating market entry. It is protected by registered patent, trademark, and copyright, underscoring the commercial value of professional design.

Socially, the system benefits coaches, analysts, and athletes by eliminating field-side laptops through onboard compute and direct-to-cloud data handling. Download times are drastically reduced—90 tags in under a minute versus 20 minutes previously—enabling faster decisions and immediate athlete feedback. This supports injury prevention and long-term performance.

Features like tool-free magnetic mounting and EVA carry kits improve portability and reduce setup time, streamlining workflows in demanding environments.

Environmentally, Vector 8 aligns with circular economy principles by promoting longevity and reducing waste. Its modular architecture enables component sharing, firmware extensibility, and replaceable batteries, reducing tooling, packaging, and logistical waste.

Materials and construction techniques were optimised for serviceability, manufacturability, and long lifecycle performance.

The project promotes the importance of professional design in Victoria, across Australia, and internationally. Designed in Melbourne, its global adoption by leading clubs and codes demonstrates how system-led design delivers measurable gains in performance, efficiency, and scale.

This success elevates the reputation of Victoria’s design and creative culture, showcasing world-class innovation and problem-solving. Comprehensive IP protection further highlights the value created through professional design.
